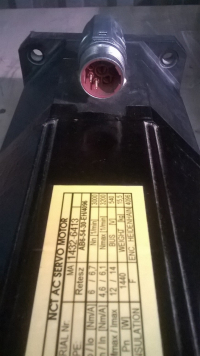

NCT AB6-54-30-EH/4096 (Код: )

Static torque, M0 6.0 Nm
Static current, I0 4.5 A
Rated output, Pn 1440 W
Rated torque, Mn 4.6 Nm
Rated current, In 3.5 A
Rated speed, nn 3000 /min
Maximum torque, Mmax 12.0 Nm
Maximum current, Imax 11.0 A
Maximum speed, nmax 3200 /min
Voltage constant, Ke 95V/(1000/min)
DC bus voltage, UDCbusz 540 V
Moment of inertia (without brake), J 32 Kgcm2
Mass, m 12 Kg
Mass with brake, m 15.5 Kg
Line resistance, R 3.6 Ω
Protection class IP55
Insulation class F
Incremental encoder/resolution ERN1326/4096
Absolute encoder Single/Multiturn ECN1325/EQN1337
Brake Available

Цена: 0.00 RUB
Количество на складе: 1
